I-STAP-IFX-ALPHA 1.3

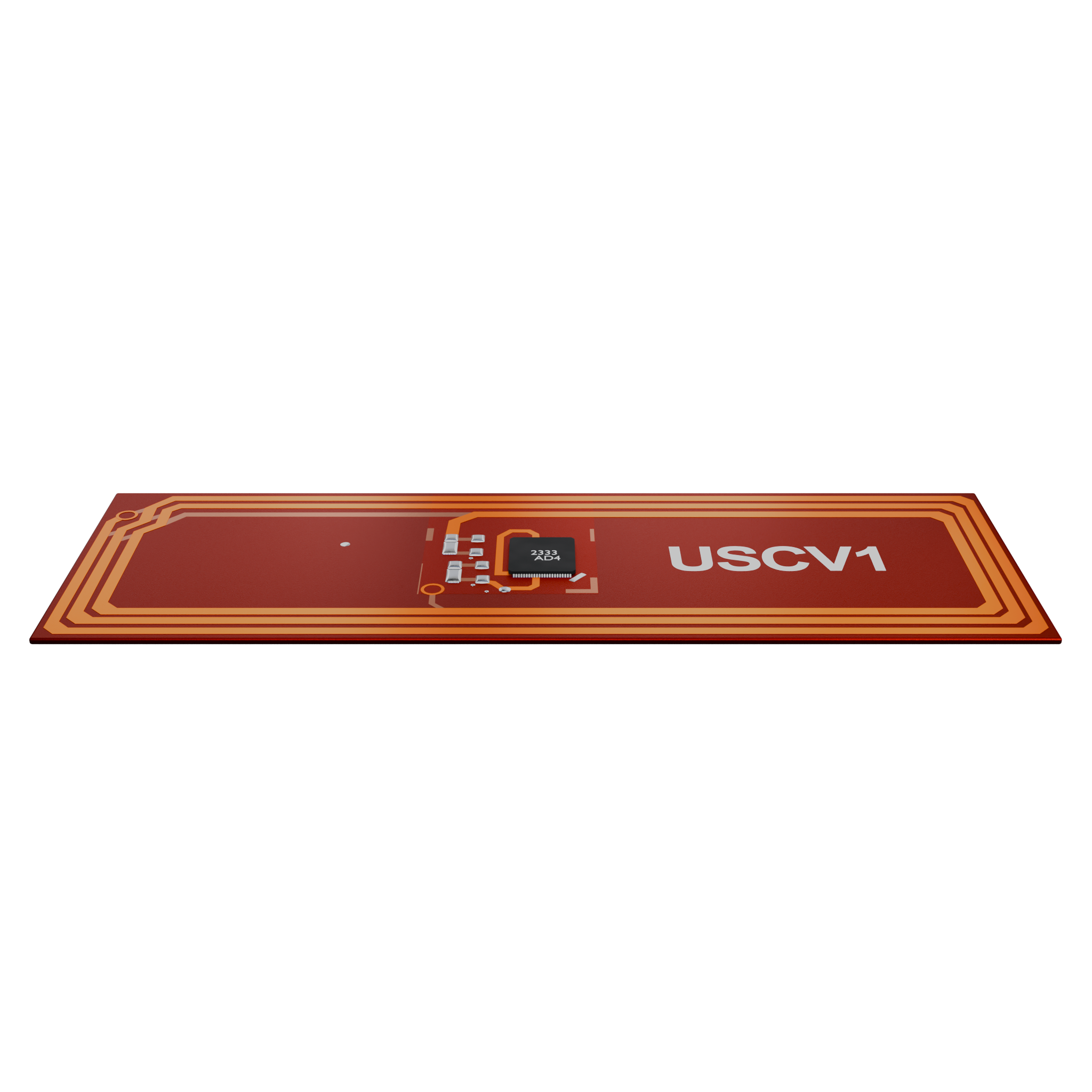

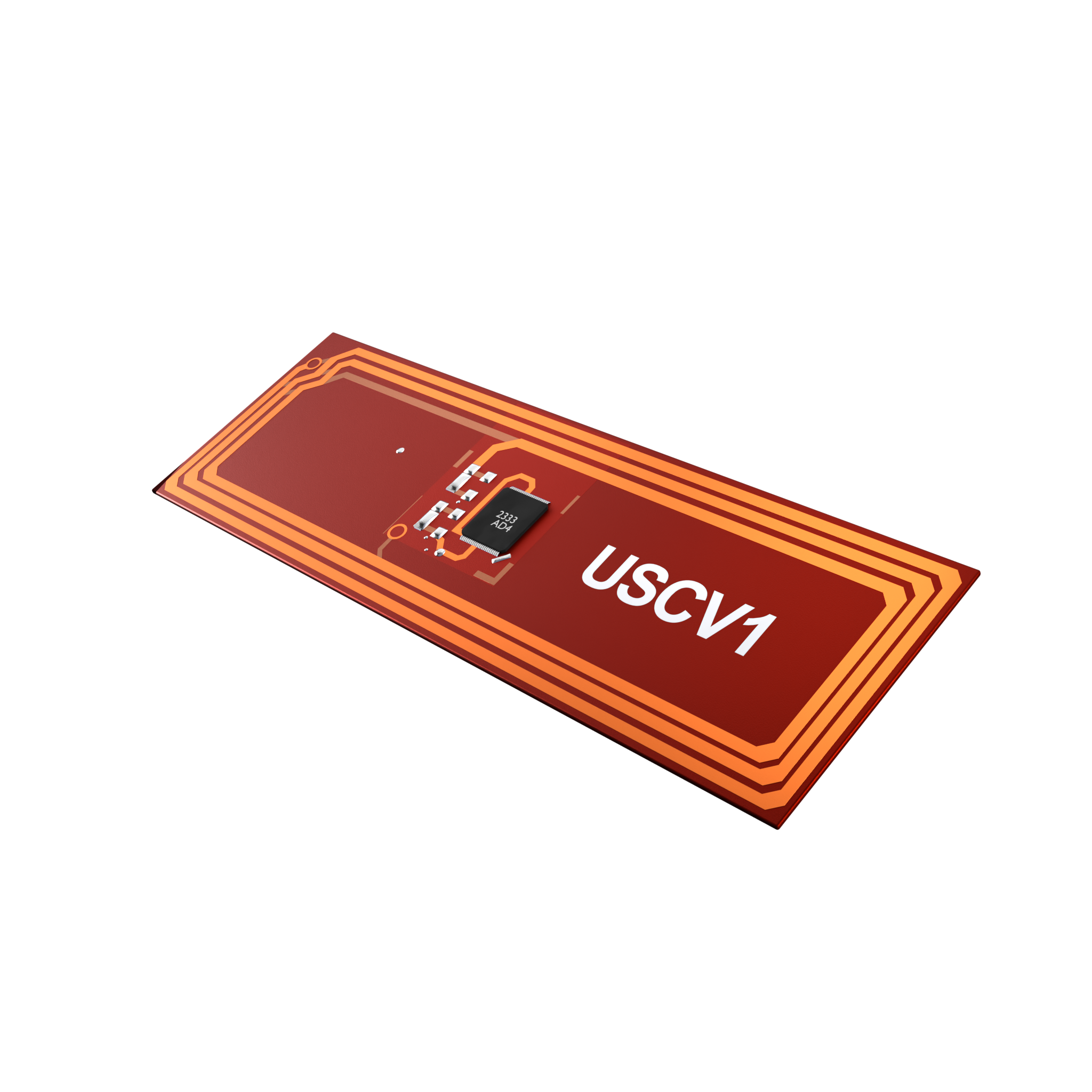

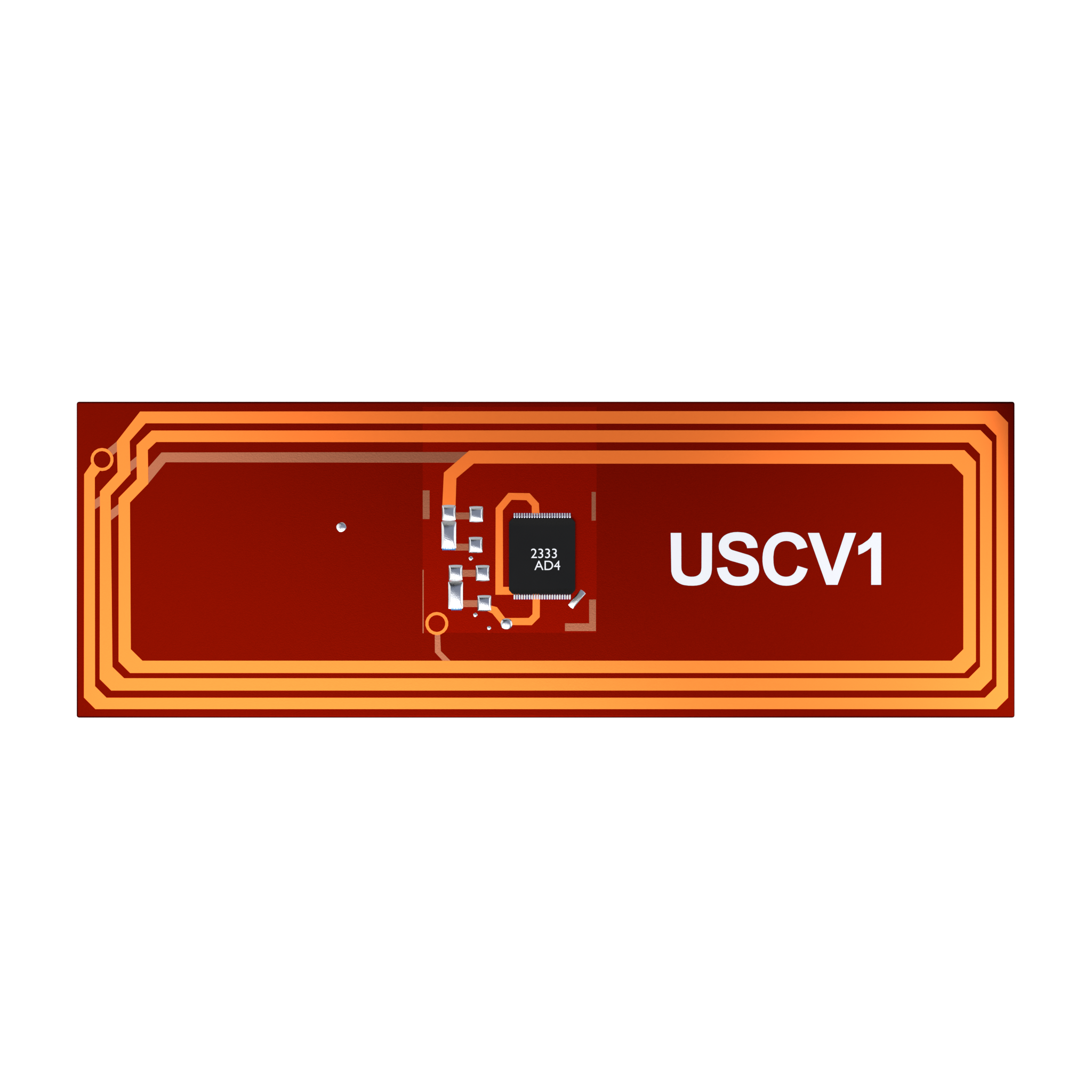

Alpha Inlay
A more narrow, compact inlay passive inlay designed for wearables with a thinner footprint. Perfect for watch straps, bracelets, and wristbands. The inlay is MasterCard certified for the payments industry with flexibility to support additional NFC and Mifare 1k applications. The Infineon microprocessors ensure high cryptography and security.
Part number
I-STAP-IFX-ALPHA 1.3Dimensions
9mm x 30mmMax Thickness
0.87mmWeight
0.25gOperating Temperature
-20ºC to +80ºCStorage Temperature
23ºC ±3ºCStorage Duration
12 months from delivery dateInterface
ISO14443Environmental Compliance
RoHS, China RoHSMastercard Certification
CLOAUSCA230203-230714(a)Compatible with
Watchstraps, Wristbands
